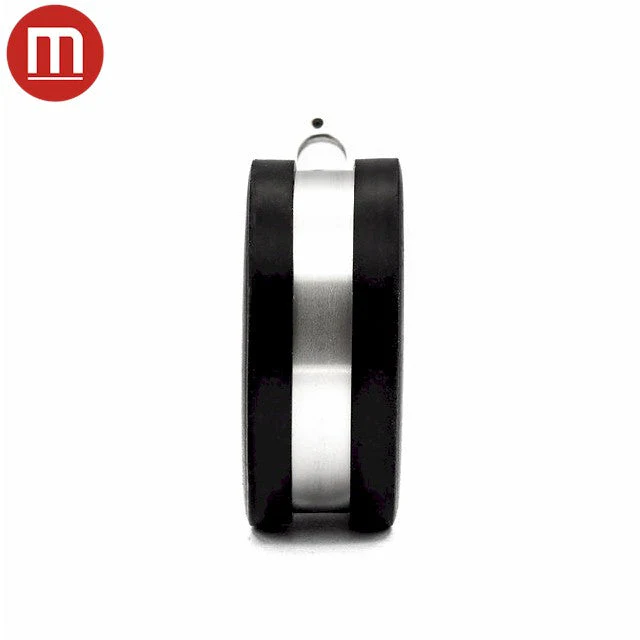

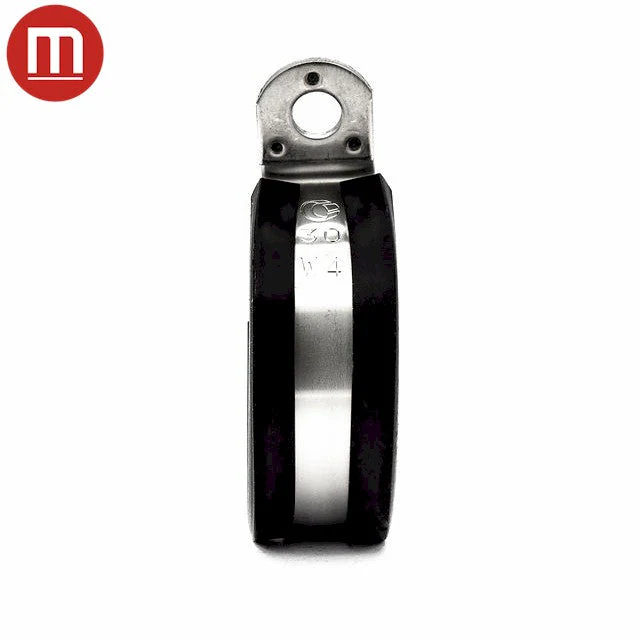

Metal P Clip (Rubber Lined) - Max Dia-10mm - Width-15mm

Description

HCL's Zinc Plated Steel Rubber lined P clips have an elastomer sheathing that absorbs jolts and vibrations, preventing damage to cables and hoses; and also acts as an excellent electrical insulator. The PK series Rubber lined P Clip is manufactured in accordance with DIN3016, incorporating a reinforced fastening hole and is made from Zinc Plated Steel.

Downloads

Product Specifications

  • Max diameter mm - inch10 - 0.39
  • Offset distance mm - inch14.7 - 0.58
  • Hole diameter mm - inch6.4 - 0.25
  • Band Thickness mm - inch0.6 - 0.02
  • Rubber width mm -inch19.0 - 0.75
  • Manufactured According toDIN3016
  • Hazardous Goods No
  • RoHS Compliant Yes

Features

  • Rubber Lining prevents damage to hoses
  • Reinforced fastening hole
  • Corrosion resistant
$0.74
Metal P Clip (Rubber Lined) - Max Dia-10mm - Width-15mm—
$0.74

Product Information

Shipping & Returns

Description

Description

HCL's Zinc Plated Steel Rubber lined P clips have an elastomer sheathing that absorbs jolts and vibrations, preventing damage to cables and hoses; and also acts as an excellent electrical insulator. The PK series Rubber lined P Clip is manufactured in accordance with DIN3016, incorporating a reinforced fastening hole and is made from Zinc Plated Steel.

Downloads

Product Specifications

  • Max diameter mm - inch10 - 0.39
  • Offset distance mm - inch14.7 - 0.58
  • Hole diameter mm - inch6.4 - 0.25
  • Band Thickness mm - inch0.6 - 0.02
  • Rubber width mm -inch19.0 - 0.75
  • Manufactured According toDIN3016
  • Hazardous Goods No
  • RoHS Compliant Yes

Features

  • Rubber Lining prevents damage to hoses
  • Reinforced fastening hole
  • Corrosion resistant
