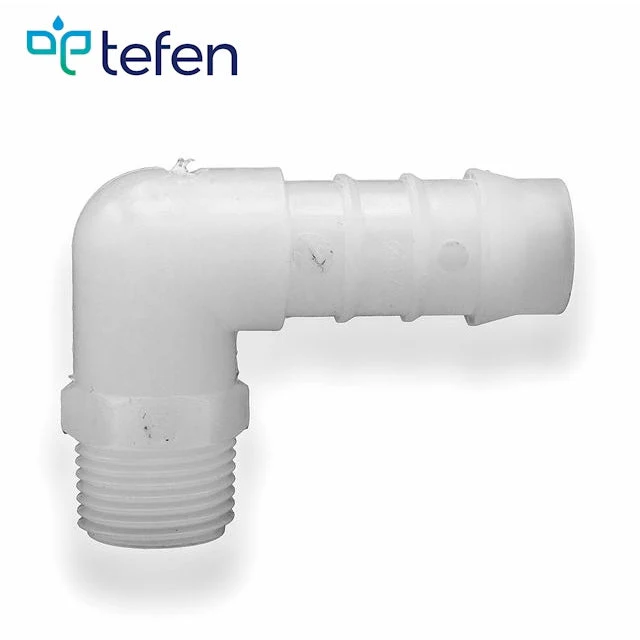

Tefen PVDF Male 3/4" BSPT Elbow Hose Conn White Fits 12mm Hose ID
Description
Tefen PVDF fittings demonstrate high mechanical properties, chemical resistance and thermal advantages, as well as high stability to withstand these advantages during exposure to UV, radioactive and gamma radiation. Tefen’s PVDF is a prime virgin material certified in use with drinking water (NSF) and in food stuff (FDA), Up to 120° [C]. It is mainly used in the petrochemical, semiconductors, water distillation, pharma and food industries. * Nuts material is Reinforced PP
In order to secure tube on the fitting bard, it is recommended to use HCL's Herbie Clip or similar Metal Clamps such as the Ezyclik-M, Ezyclik-P or the Norma Cobra Clamp.
BSP - BSPT Fitting Guide
Downloads
Note on choosing the correct part
- Fits Hose/Tube ID - refers to the Inner Diameter of the Hose/Tube you are using with the Tefen Fitting
- Fits Irrigation Hose/Tube OD - refers to the Outer Diameter of commonly used irrigation hoses

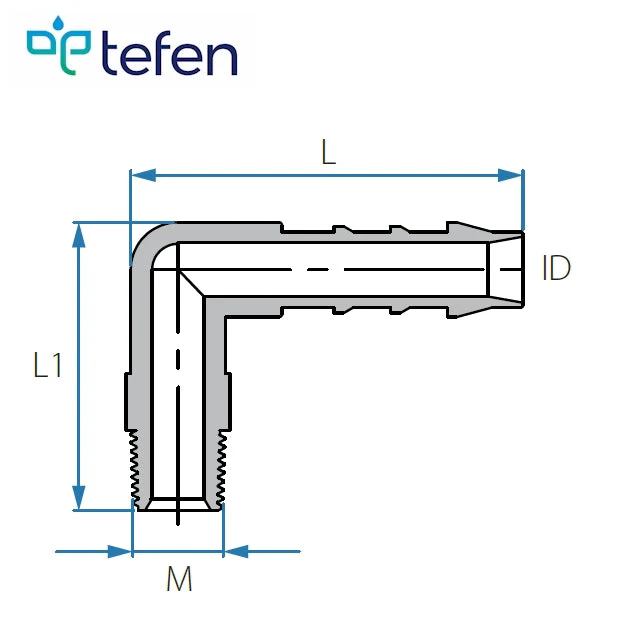

Product Specifications
- Fits Hose/Tube ID mm12.0
- Male (M) BSPT Inch3/4"
- Length (L) mm48.7
- Length 1 (L) mm39.7
- Working Pressure14 Bar/200 PSI (@20°C)
- ColourWhite
- Min Temp °C-20
- Max Temp °C120
- Material PVDF
- Manufactured By Tefen
Features
- High mechanical properties
- Chemical resistance
- Thermal Advantages
- Resistance to UV, radioactive and gamma radiation
