Tefen PP Black BSPT 1/2" Male Elbow Conn - Fits 12mm OD Hose

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7

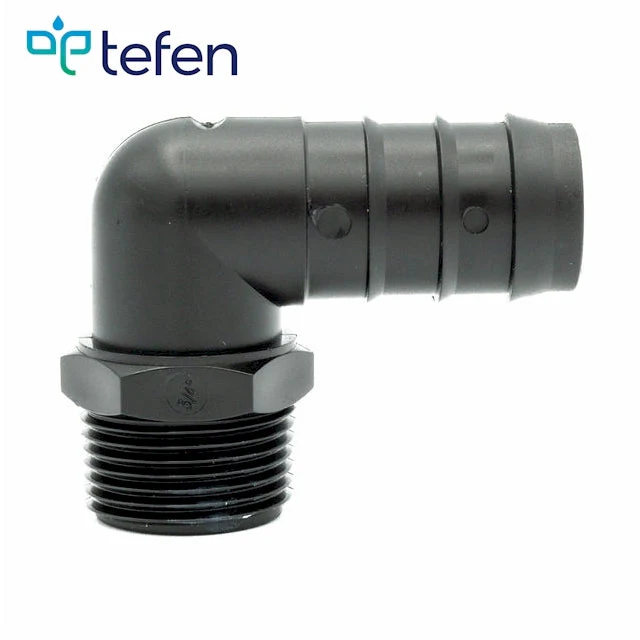

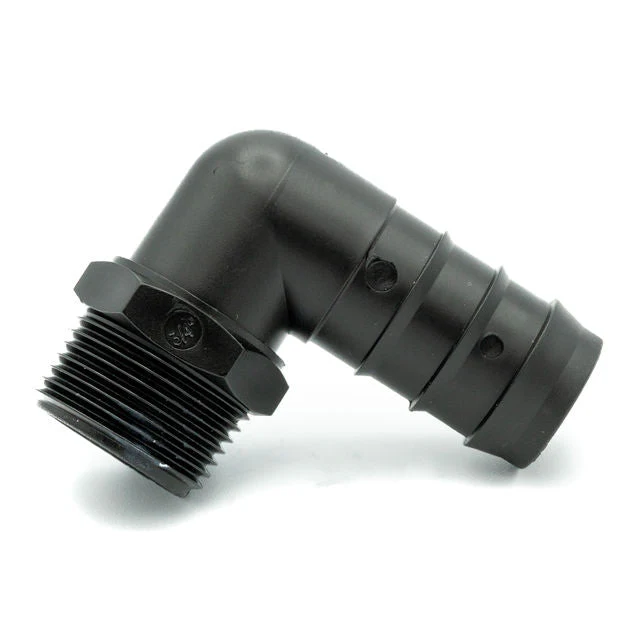

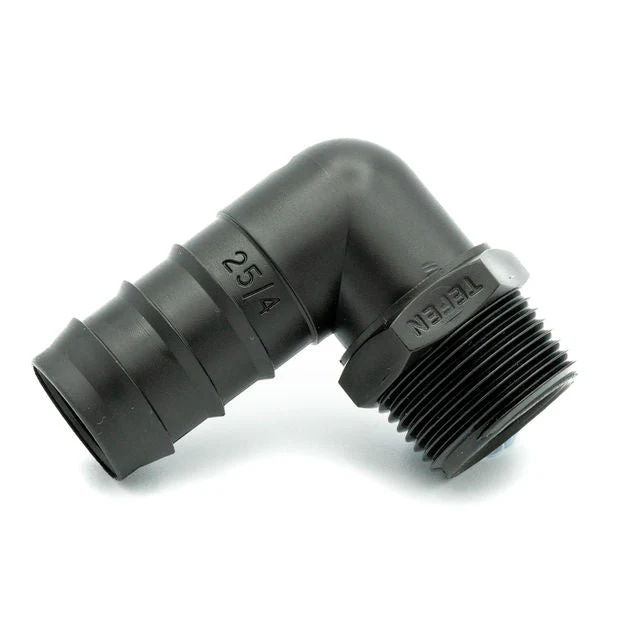

Tefen PP Black BSPT 1/2" Male Elbow Conn - Fits 12mm OD Hose

Description

Tefen barb connectors are push fit connectors (no need for hose clamp), designed to operate with all PE tubes class 2.5-4 PN, at the range. Can work with other flexible plastic and rubber pipes. The fittings and sealing mechanism are based on a barb that holds the tube from the inside diameter. Fittings size indicate the nominal outside diameter of the tube. For example; 5/8" barb fitting, fits a 5/8" irrigation tube class 2.5, with inner diameter of 1/2".

BSP- BSPT Fitting Guide

Downloads

Note on choosing the correct part

  • Fits Hose/Tube ID - refers to the inner Diameter of the Hose/Tube you are using with the Tefen Fitting
  • Fits Irrigation Hose/Tube OD - refers to the Outer Diameter of commonly used irrigation hoses

Product Specifications

  • Fits Hose/Tube OD mm (Irrigation) 12.0
  • Male (M) BSPT inch 1/2
  • Length (L) mm 48.4
  • Length (L1) mm 38.0
  • Working Pressure14 Bar/200 PSI (@20°C)
  • Min Temp °C4
  • Max Temp °C90
  • Material Polypropylene
  • Manufactured By Tefen

Features

  • Strong and durable
  • High impact resistance
  • UV resitant
  • TSCA compliant
$0.55

Original: $1.58

-65%
Tefen PP Black BSPT 1/2" Male Elbow Conn - Fits 12mm OD Hose—

$1.58

$0.55

Product Information

Shipping & Returns

Description

Description

Tefen barb connectors are push fit connectors (no need for hose clamp), designed to operate with all PE tubes class 2.5-4 PN, at the range. Can work with other flexible plastic and rubber pipes. The fittings and sealing mechanism are based on a barb that holds the tube from the inside diameter. Fittings size indicate the nominal outside diameter of the tube. For example; 5/8" barb fitting, fits a 5/8" irrigation tube class 2.5, with inner diameter of 1/2".

BSP- BSPT Fitting Guide

Downloads

Note on choosing the correct part

  • Fits Hose/Tube ID - refers to the inner Diameter of the Hose/Tube you are using with the Tefen Fitting
  • Fits Irrigation Hose/Tube OD - refers to the Outer Diameter of commonly used irrigation hoses

Product Specifications

  • Fits Hose/Tube OD mm (Irrigation) 12.0
  • Male (M) BSPT inch 1/2
  • Length (L) mm 48.4
  • Length (L1) mm 38.0
  • Working Pressure14 Bar/200 PSI (@20°C)
  • Min Temp °C4
  • Max Temp °C90
  • Material Polypropylene
  • Manufactured By Tefen

Features

  • Strong and durable
  • High impact resistance
  • UV resitant
  • TSCA compliant
