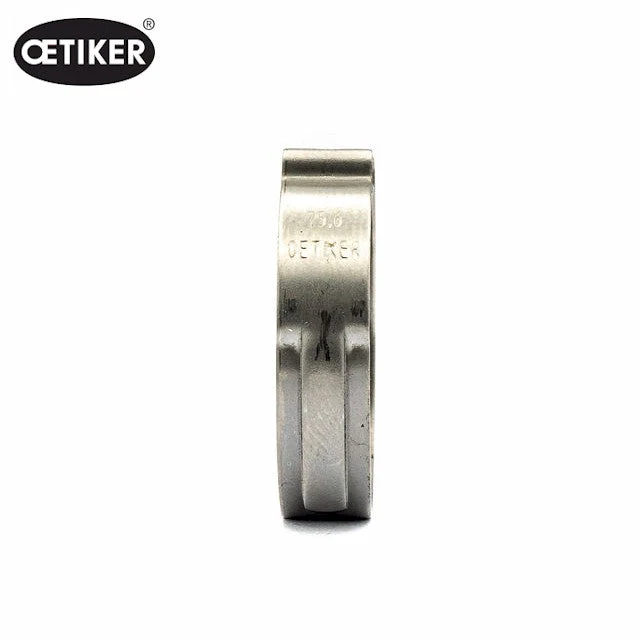

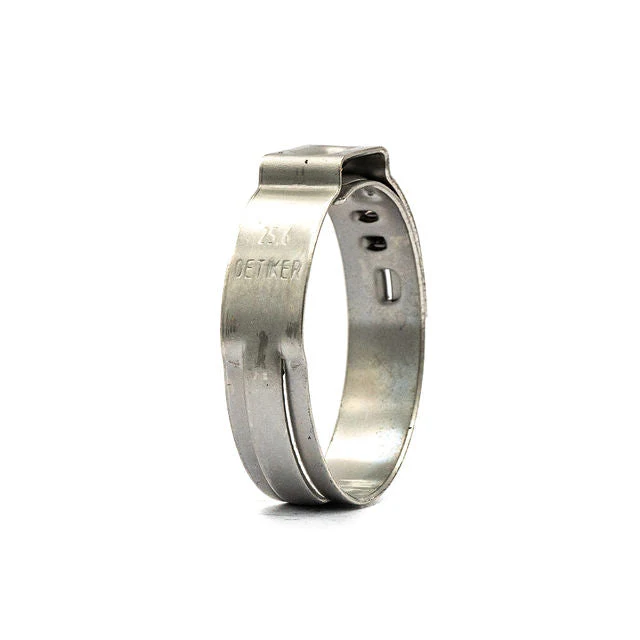

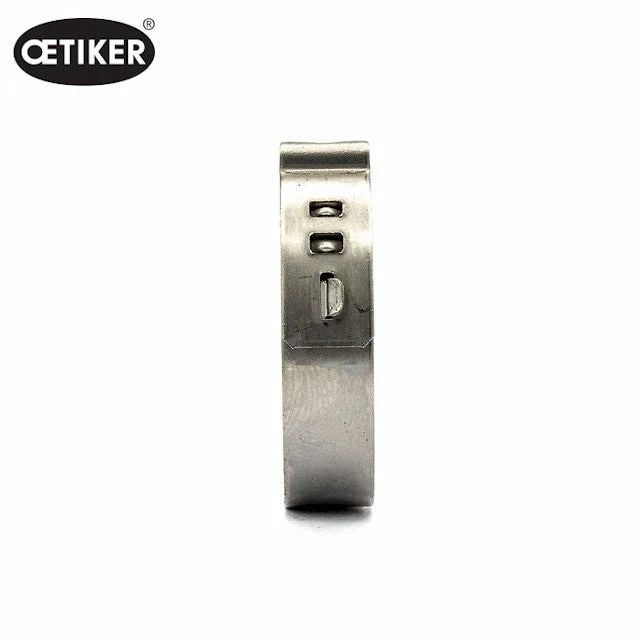

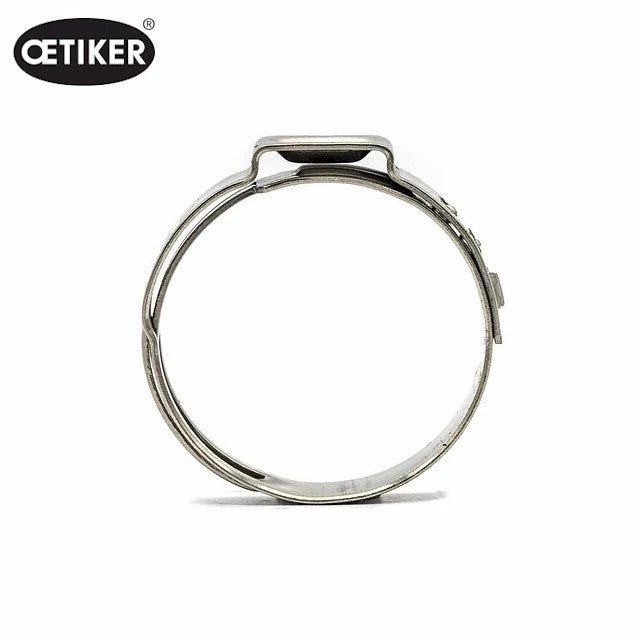

Oetiker Stepless Ear Clamp-W:9mm-Dia 34.9-38.1mm-304SS
Description
The Oetiker Stepless narrow band concentrates the transmission of clamping force into a uniform compression and surface pressure. The clamp ear compensates for component intolerances with adjustable surface pressure whilst the dimple increases the clamping force with a spring-effect compensating for changes in diameter caused by thermal expansion. The specially formed strip edges reduce risk of damage to clamped parts.
Video
Downloads
Product Specifications
- Manimum Diameter (A) mm - inch34.90 - 1.37
- Maximum Diameter (A) mm - inch38.1 - 1.50
- Band Width (B) mm - inch9.0 - 0.35
- Band Thickness (C) mm - inch0.6 - 0.02
- Band Material 304 Stainless Steel
- Hazardous Goods No
- RoHS Compliant Yes
Features
- Manufactured to DIN3017 Standard
- Smooth Underside
- Bevelled Edges Protect Hose
- Exclusive Housing Design
Original: $1.62
-65%$1.62
$0.57Product Information
