Norma Cobra Spring Hose Clip - Dia 14.5-16.0mm - W4 304SS
Description

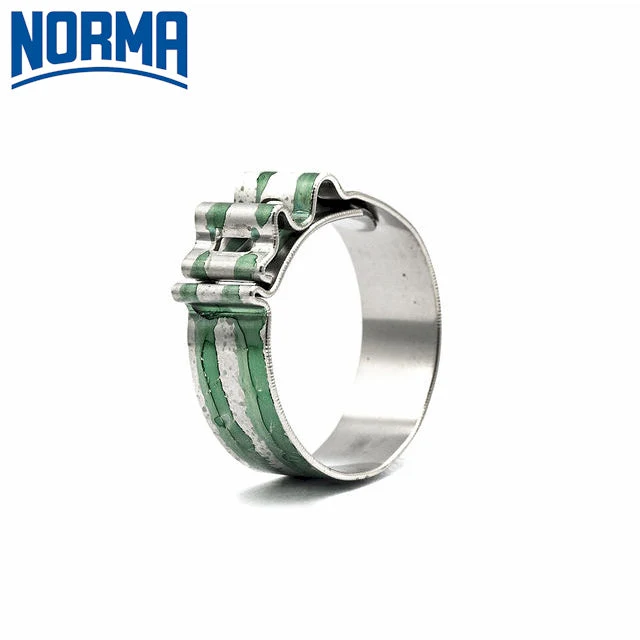

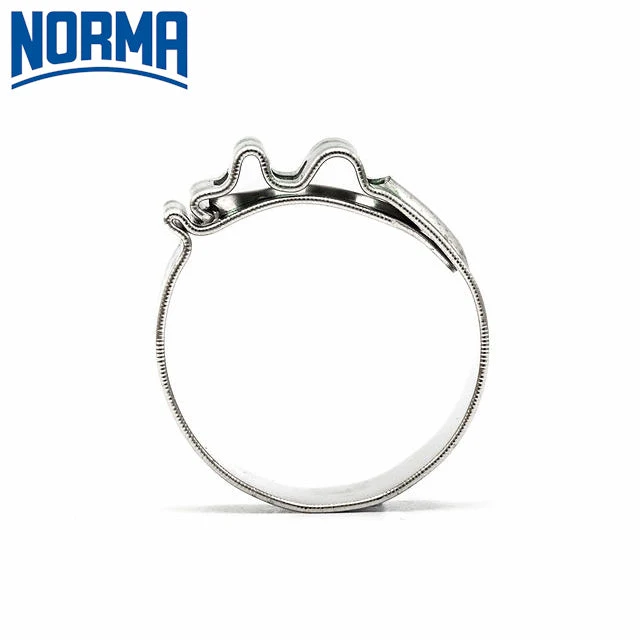

NORMACLAMP® COBRA products are bolt-free, one-piece hose clips. Their low overall height enables precise installation in even the tightest of spaces. NORMACLAMP® COBRA clamps are quick and easy to install. They have a self adjusting diameter which compensates for tolerances at the outer diameter of the hose. They are colour coded to provide a rapid way of visually distinguishing between nominal diameters and they have a single lock-in point which provides an installation indicator for easy checking.
Downloads
Product Specifications
- Diameter Range (A) mm14.5 - 16.0
- Diameter Range (A) inch0.57 - 0.63
- Band Width (B) mm - inch8.0 - 0.31
- Band Thickness (C) mm - inch0.3 - 0.024
- Marking ColourPurple
- Band Material W4 - 304 Stainless Steel
- Corrosion ResistanceMin 240h salt spray testing
- Manufactured By NORMA Group
- Hazardous Goods No
- RoHS Compliant Yes
Features
- Bolt-free hose clip in one piece
- Quick, easy and safe installation
- Maintenance-free fit
